2. Pierwsza sieć neuronowa

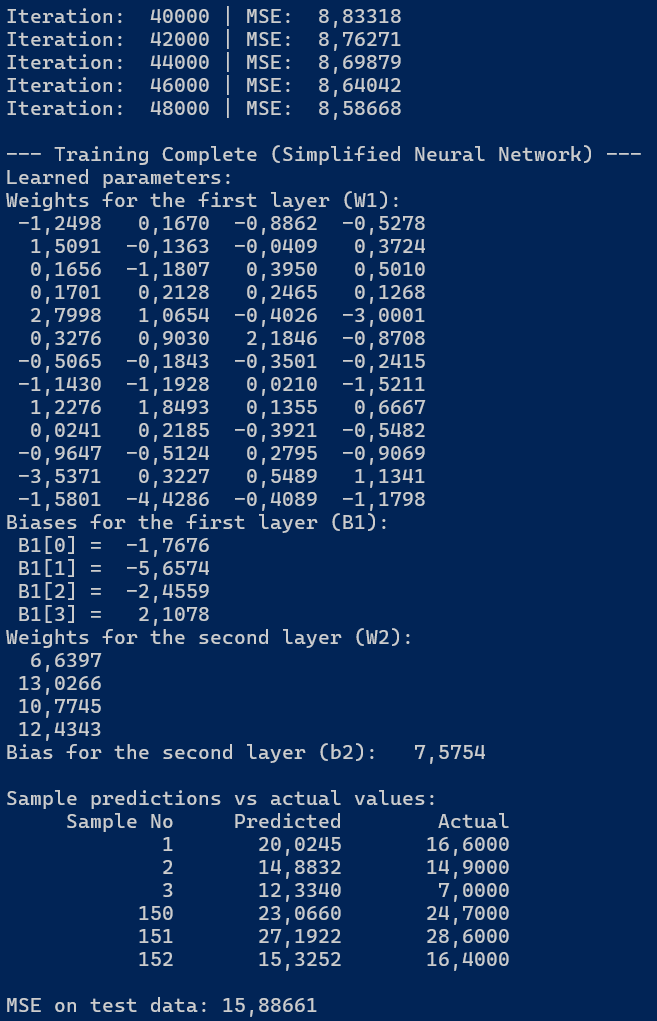

Poniżej przedstawiono implementację prostej sieci neuronowej w Delphi Object Pascalu. Kod ten jest portem kodu C# omówionego w artykule Pierwsza sieć neuronowa.

Implementacja prostej sieci neuronowej

Pełen kod znajduje się na GitHub.

program FirstNeuralNetwork;

{$APPTYPE CONSOLE}

uses
  SysUtils,
  Windows,
  DataUtility in 'DataUtility.pas',
  MatrixUtility in 'MatrixUtility.pas';

const
  { Hyperparameters for the model }
  LearningRate: Single = 0.0005;
  Iterations: Integer = 48000;
  PrintEvery: Integer = 2000;
  TestSplitRatio: Single = 0.7;
  RandomSeed: Integer = 251113;
  HiddenLayerSize: Integer = 4;

var
  { Data }
  trainData, testData, XTrain, YTrain, XTest, YTest: TMatrix2D;

  { Model parameters with gradients }
  W1, dLdW1, W2, dLdW2: TMatrix2D;
  B1, dLdBias1: TMatrix1D;
  b2, dLdBias2: Single;

  { Test predictions }
  M1Test, N1Test, O1Test, M2Test, testPredictions, testErrors: TMatrix2D;

  { Other }
  dLdP, dLdO1, dLdN1, XTrainT, M1, N1, O1, M2, predictions, errors: TMatrix2D;
  negativeTwoOverN, meanSquaredError: Single;
  i, j, iteration, inputFeatureCount, nTrain, nTest: Integer;
  showTestSamples: array of Integer;

begin
  SetConsoleOutputCP(CP_UTF8);

  { Load data (trainData, testData) }
  GetData(trainData, testData, RandomSeed, TestSplitRatio);

  { Prepare XTrain, YTrain, XTest, YTest }
  inputFeatureCount := Length(trainData[0]) - 1;
  nTrain := Length(trainData);
  nTest := Length(testData);

  XTrain := CreateMatrix2D(nTrain, inputFeatureCount);
  YTrain := CreateMatrix2D(nTrain, 1);

  XTest := CreateMatrix2D(nTest, inputFeatureCount);
  YTest := CreateMatrix2D(nTest, 1);

  { Fill XTrain / YTrain }
  for i := 0 to nTrain - 1 do
  begin
    for j := 0 to inputFeatureCount - 1 do
      XTrain[i][j] := trainData[i][j];
    YTrain[i][0] := trainData[i][inputFeatureCount];
  end;

  { Fill XTest / YTest }
  for i := 0 to nTest - 1 do
  begin
    for j := 0 to inputFeatureCount - 1 do
      XTest[i][j] := testData[i][j];
    YTest[i][0] := testData[i][inputFeatureCount];
  end;

  { Initialize parameters: W1, B1, W2, b2 }
  W1 := CreateMatrix2D(inputFeatureCount, HiddenLayerSize);
  RandomInPlace(W1, RandomSeed);
  B1 := CreateMatrix1D(HiddenLayerSize);

  W2 := CreateMatrix2D(HiddenLayerSize, 1);
  { We use RandomSeed + 1 because we want different random values than for W1 }
  RandomInPlace(W2, RandomSeed + 1);
  b2 := 0.0;

  { Precompute common quantities }
  XTrainT := Transpose(XTrain);
  negativeTwoOverN := -2.0 / nTrain;

  { Training loop (forward + backward) }
  for iteration := 1 to Iterations do
  begin
    { Forward pass }
    M1 := MultiplyDot(XTrain, W1);
    N1 := AddRow(M1, B1);
    O1 := Sigmoid(N1);

    M2 := MultiplyDot(O1, W2);
    predictions := Add(M2, b2);

    errors := Subtract(YTrain, predictions);

    { Backward pass }

    { The second layer (output) }
    dLdP := Multiply(errors, negativeTwoOverN);
    dLdW2 := MultiplyDot(Transpose(O1), dLdP);
    dLdBias2 := Sum(dLdP);

    { The first layer (hidden) }
    dLdO1 := MultiplyDot(dLdP, Transpose(W2));
    dLdN1 := MultiplyElementwise(dLdO1, SigmoidDerivative(N1));
    dLdBias1 := SumByColumn(dLdN1);
    dLdW1 := MultiplyDot(XTrainT, dLdN1);

    { Update parameters }
    W1 := Subtract(W1, Multiply(dLdW1, LearningRate));
    W2 := Subtract(W2, Multiply(dLdW2, LearningRate));
    B1 := Subtract(B1, Multiply(dLdBias1, LearningRate));
    b2 := b2 - (dLdBias2 * LearningRate);

    if (iteration mod PrintEvery) = 0 then
    begin
      { Mean Squared Error }
      meanSquaredError := Mean(Power(errors, 2));

      Writeln(Format('Iteration: %6d | MSE: %8.5f',
        [iteration, meanSquaredError]));
    end;
  end;

  { Print learned parameters (W1, B1, W2, b2) }
  Writeln;
  Writeln('--- Training Complete (Simplified Neural Network) ---');
  Writeln('Learned parameters:');
  Writeln('Weights for the first layer (W1):');
  for i := 0 to Length(W1) - 1 do
  begin
    for j := 0 to Length(W1[0]) - 1 do
      Write(Format('%8.4f ', [W1[i][j]]));
    Writeln;
  end;

  Writeln('Biases for the first layer (B1):');
  for j := 0 to High(B1) do
    Writeln(Format(' B1[%d] = %8.4f', [j, B1[j]]));

  Writeln('Weights for the second layer (W2):');
  for i := 0 to Length(W2) - 1 do
  begin
    for j := 0 to Length(W2[0]) - 1 do
      Write(Format('%8.4f ', [W2[i][j]]));
    Writeln;
  end;

  Writeln(Format('Bias for the second layer (b2): %8.4f', [b2]));
  Writeln;

  { Evaluate on test set: forward pass for test samples }
  M1Test := MultiplyDot(XTest, W1);
  N1Test := AddRow(M1Test, B1);
  O1Test := Sigmoid(N1Test);
  M2Test := MultiplyDot(O1Test, W2);
  testPredictions := Add(M2Test, b2);

  Writeln('Sample predictions vs actual values:');
  Writeln(Format('%14s%14s%14s', ['Sample No', 'Predicted', 'Actual']));

  showTestSamples := [0, 1, 2, nTest - 3, nTest - 2, nTest - 1];

  for i := 0 to High(showTestSamples) do
  begin
    Writeln(Format('%14d%14.4f%14.4f', [showTestSamples[i] + 1,
      testPredictions[showTestSamples[i]][0], YTest[showTestSamples[i]][0]]));
  end;

  testErrors := Subtract(YTest, testPredictions);
  meanSquaredError := Mean(Power(testErrors, 2));

  Writeln;
  Writeln(Format('MSE on test data: %8.5f', [meanSquaredError]));

  Readln;

end.

Moduł pomocniczy do operacji macierzowych

Pełen kod znajduje się na GitHub.

unit MatrixUtility;

interface

uses
  SysUtils,
  Math;

type
  TMatrix1D = array of Single;
  TMatrix2D = array of array of Single;

  { --- Create arrays --- }

function CreateMatrix2D(rows, cols: Integer): TMatrix2D;
function CreateMatrix1D(rows: Integer): TMatrix1D;

{ --- Function / procedures --- }

function Add(const A: TMatrix2D; scalar: Single): TMatrix2D;
function AddRow(const A: TMatrix2D; const B: TMatrix1D): TMatrix2D;
function Mean(const A: TMatrix2D): Single;
function Multiply(const A: TMatrix2D; scalar: Single): TMatrix2D; overload;
function Multiply(const A: TMatrix1D; scalar: Single): TMatrix1D; overload;
function MultiplyDot(const A, B: TMatrix2D): TMatrix2D;
function MultiplyElementwise(const A, B: TMatrix2D): TMatrix2D; overload;
function MultiplyElementwise(const A: TMatrix1D; const B: TMatrix2D)
  : TMatrix2D; overload;
procedure PermuteInPlace(var A: TMatrix2D; seed: Integer);
function Power(const A: TMatrix2D; pow: Integer): TMatrix2D;
procedure RandomInPlace(var A: TMatrix2D; seed: Integer);
function Sigmoid(const A: TMatrix2D): TMatrix2D;
function SigmoidDerivative(const A: TMatrix2D): TMatrix2D;
procedure SplitRowsByRatio(const A: TMatrix2D; ratio: Single;
  out Set1, Set2: TMatrix2D);
procedure Standardize(var A: TMatrix2D; firstCol, count: Integer);
function Subtract(const A, B: TMatrix2D): TMatrix2D; overload;
function Subtract(const A, B: TMatrix1D): TMatrix1D; overload;
function Sum(const A: TMatrix2D): Single;
function SumByColumn(const A: TMatrix2D): TMatrix1D;
function Transpose(const A: TMatrix2D): TMatrix2D;

implementation

uses
  System.Generics.Collections;

{ --- Create arrays --- }

function CreateMatrix2D(rows, cols: Integer): TMatrix2D;
begin
  SetLength(Result, rows, cols);
end;

function CreateMatrix1D(rows: Integer): TMatrix1D;
begin
  SetLength(Result, rows);
end;

{ --- Function / procedures --- }

function Add(const A: TMatrix2D; scalar: Single): TMatrix2D;
var
  i, j, aRows, aCols: Integer;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  Result := CreateMatrix2D(aRows, aCols);

  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
      Result[i, j] := A[i, j] + scalar;
end;

function AddRow(const A: TMatrix2D; const B: TMatrix1D): TMatrix2D;
var
  i, j, aRows, aCols: Integer;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  Result := CreateMatrix2D(aRows, aCols);

  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
      Result[i, j] := A[i, j] + B[j];
end;

function Mean(const A: TMatrix2D): Single;
var
  i, j, aRows, aCols: Integer;
  Sum: Single;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  Sum := 0;
  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
      Sum := Sum + A[i][j];
  Result := Sum / (aRows * aCols);
end;

function Multiply(const A: TMatrix2D; scalar: Single): TMatrix2D; overload;
var
  i, j, aRows, aCols: Integer;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  Result := CreateMatrix2D(aRows, aCols);

  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
      Result[i][j] := A[i][j] * scalar;
end;

function Multiply(const A: TMatrix1D; scalar: Single): TMatrix1D; overload;
var
  i, len: Integer;
begin
  len := Length(A);
  Result := CreateMatrix1D(len);

  for i := 0 to len - 1 do
    Result[i] := A[i] * scalar;
end;

function MultiplyElementwise(const A, B: TMatrix2D): TMatrix2D; overload;
var
  i, j, aRows, aCols, bRows, bCols, maxCols, maxRows: Integer;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  bRows := Length(B);
  bCols := Length(B[0]);
  maxCols := Max(aCols, bCols);
  maxRows := Max(aRows, bRows);
  Result := CreateMatrix2D(maxRows, maxCols);

  for i := 0 to maxRows - 1 do
    for j := 0 to maxCols - 1 do
      Result[i, j] := A[i mod aRows, j mod aCols] * B[i mod bRows, j mod bCols];
end;

function MultiplyElementwise(const A: TMatrix1D; const B: TMatrix2D)
  : TMatrix2D; overload;
var
  i, j, aCols, bRows, bCols, maxCols: Integer;
begin
  aCols := Length(A);
  bRows := Length(B);
  bCols := Length(B[0]);
  maxCols := Max(aCols, bCols);
  Result := CreateMatrix2D(bRows, maxCols);

  for i := 0 to bRows - 1 do
    for j := 0 to maxCols - 1 do
      Result[i, j] := A[j mod aCols] * B[i mod bRows, j mod bCols];
end;

function MultiplyDot(const A, B: TMatrix2D): TMatrix2D;
var
  i, j, k, aRows, aCols, bCols: Integer;
  Sum: Single;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  bCols := Length(B[0]);
  Result := CreateMatrix2D(aRows, bCols);

  for i := 0 to aRows - 1 do
    for j := 0 to bCols - 1 do
    begin
      Sum := 0;
      for k := 0 to aCols - 1 do
        Sum := Sum + A[i][k] * B[k][j];
      Result[i][j] := Sum;
    end;
end;

procedure PermuteInPlace(var A: TMatrix2D; seed: Integer);
var
  aRows, aCols: Integer;
  i, j, col: Integer;
  temp: Single;
begin
  RandSeed := seed;
  aRows := Length(A);
  aCols := Length(A[0]);

  // Fisher–Yates shuffle on rows
  for i := aRows - 1 downto 1 do
  begin
    j := Random(i + 1); // range 0..i

    if i <> j then
    begin
      // swap entire rows i and j
      for col := 0 to aCols - 1 do
      begin
        temp := A[i][col];
        A[i][col] := A[j][col];
        A[j][col] := temp;
      end;
    end;
  end;
end;

function Power(const A: TMatrix2D; pow: Integer): TMatrix2D;
var
  i, j, aRows, aCols: Integer;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  Result := CreateMatrix2D(aRows, aCols);

  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
      Result[i][j] := Math.Power(A[i][j], pow);
end;

procedure RandomInPlace(var A: TMatrix2D; seed: Integer);
var
  i, j, aRows, aCols: Integer;
begin
  RandSeed := seed;
  aRows := Length(A);
  aCols := Length(A[0]);
  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
      A[i, j] := Random - 0.5; // Random returns 0..1
end;

function Sigmoid(const A: TMatrix2D): TMatrix2D;
var
  i, j, aRows, aCols: Integer;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  Result := CreateMatrix2D(aRows, aCols);

  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
      Result[i, j] := 1 / (1 + Exp(-A[i, j]));
end;

function SigmoidDerivative(const A: TMatrix2D): TMatrix2D;
var
  i, j, aRows, aCols: Integer;
  Sigmoid: Single;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  SetLength(Result, aRows, aCols);
  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
    begin
      Sigmoid := 1 / (1 + Exp(-A[i, j]));
      Result[i, j] := Sigmoid * (1 - Sigmoid);
    end;
end;

procedure SplitRowsByRatio(const A: TMatrix2D; ratio: Single;
  out Set1, Set2: TMatrix2D);
var
  i, j, rows, cols, splitIdx: Integer;
begin
  rows := Length(A);
  cols := Length(A[0]);
  splitIdx := Trunc(rows * ratio);
  Set1 := CreateMatrix2D(splitIdx, cols);
  Set2 := CreateMatrix2D(rows - splitIdx, cols);
  for i := 0 to rows - 1 do
    for j := 0 to cols - 1 do
      if i < splitIdx then
        Set1[i, j] := A[i, j]
      else
        Set2[i - splitIdx, j] := A[i, j];
end;

procedure Standardize(var A: TMatrix2D; firstCol, count: Integer);
var
  i, j, aRows, aCols: Integer;
  Sum, Mean, sumSq, stddev, value: Single;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  for j := firstCol to firstCol + count - 1 do
  begin
    Sum := 0;
    for i := 0 to aRows - 1 do
      Sum := Sum + A[i, j];
    Mean := Sum / aRows;
    sumSq := 0;
    for i := 0 to aRows - 1 do
    begin
      value := A[i, j] - Mean;
      sumSq := sumSq + value * value;
    end;
    stddev := Sqrt(sumSq / aRows);
    if stddev = 0 then
      stddev := 1;
    for i := 0 to aRows - 1 do
      A[i, j] := (A[i, j] - Mean) / stddev;
  end;
end;

function Subtract(const A, B: TMatrix2D): TMatrix2D; overload;
var
  i, j, aRows, aCols: Integer;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  Result := CreateMatrix2D(aRows, aCols);

  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
      Result[i][j] := A[i][j] - B[i][j];
end;

function Subtract(const A, B: TMatrix1D): TMatrix1D; overload;
var
  i, len: Integer;
begin
  len := Length(A);
  Result := CreateMatrix1D(len);

  for i := 0 to len - 1 do
    Result[i] := A[i] - B[i];
end;

function Sum(const A: TMatrix2D): Single;
var
  i, j, aRows, aCols: Integer;
begin
  Result := 0;
  aRows := Length(A);
  aCols := Length(A[0]);
  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
      Result := Result + A[i, j];
end;

function SumByColumn(const A: TMatrix2D): TMatrix1D;
var
  i, j, aRows, aCols: Integer;
  Sum: Single;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  Result := CreateMatrix1D(aCols);

  for j := 0 to aCols - 1 do
  begin
    Sum := 0;
    for i := 0 to aRows - 1 do
      Sum := Sum + A[i, j];
    Result[j] := Sum;
  end;
end;

function Transpose(const A: TMatrix2D): TMatrix2D;
var
  i, j, aRows, aCols: Integer;
begin
  aRows := Length(A);
  aCols := Length(A[0]);
  Result := CreateMatrix2D(aCols, aRows);

  for i := 0 to aRows - 1 do
    for j := 0 to aCols - 1 do
      Result[j][i] := A[i][j];
end;

end.

Moduł pomocniczy do operacji na danych

Pełen kod znajduje się na GitHub.

unit DataUtility;

interface

uses
  MatrixUtility;

procedure GetData(out ATrain, ATest: TMatrix2D; randomSeed: Integer;
  testSplitRatio: Single);

implementation

uses
  Classes,
  SysUtils;

function LoadCsv(filePath: string): TMatrix2D;
var
  lines: TStringList;
  i, j, rows, cols: Integer;
  value: string;
  values: TArray<string>;
  formatSettings: TFormatSettings;
begin
  lines := TStringList.Create;
  try
    lines.LoadFromFile(filePath);

    rows := lines.Count - 1;
    values := lines[1].Split([',']);
    cols := Length(values);

    Result := CreateMatrix2D(rows, cols);
    formatSettings.DecimalSeparator := '.';

    for i := 1 to lines.Count - 1 do
    begin
      values := lines[i].Split([',']);
      for j := 0 to cols - 1 do
      begin
        value := values[j].Trim(['"']);
        Result[i - 1][j] := StrToFloat(value, formatSettings);
      end;
    end;

  finally
    lines.Free;
  end;
end;

procedure GetData(out ATrain, ATest: TMatrix2D; randomSeed: Integer;
  testSplitRatio: Single);
var
  BostonData: TMatrix2D;
  inputFeatureCount: Integer;
begin
  BostonData := LoadCsv('..\..\..\..\data\Boston\BostonHousing.csv');

  { Number of independent variables (last column is target) }
  inputFeatureCount := Length(BostonData[0]) - 1;

  { Standardize features except target }
  Standardize(BostonData, 0, inputFeatureCount);

  { Shuffle rows }
  PermuteInPlace(BostonData, randomSeed);

  { Split into Train and Test }
  SplitRowsByRatio(BostonData, testSplitRatio, ATrain, ATest);
end;

end.

Efekt działania programu

Poniżej przedstawiono screenshot z wynikami działania powyższego kodu.

Sieć neuronowa

Rysunek 2.1. Wynik działania programu.

Po 48000 iteracji średni błąd kwadratowy (MSE) na danych testowych wyniósł 15,88661, a na danych treningowych - 8,58668.

Created: 2025-11-30

Last modified: 2025-12-01

Title: 2. Pierwsza sieć neuronowa

Tags: [Delphi] [Pascal] [Object Pascal] [Sieci neuronowe]

Edit this page
